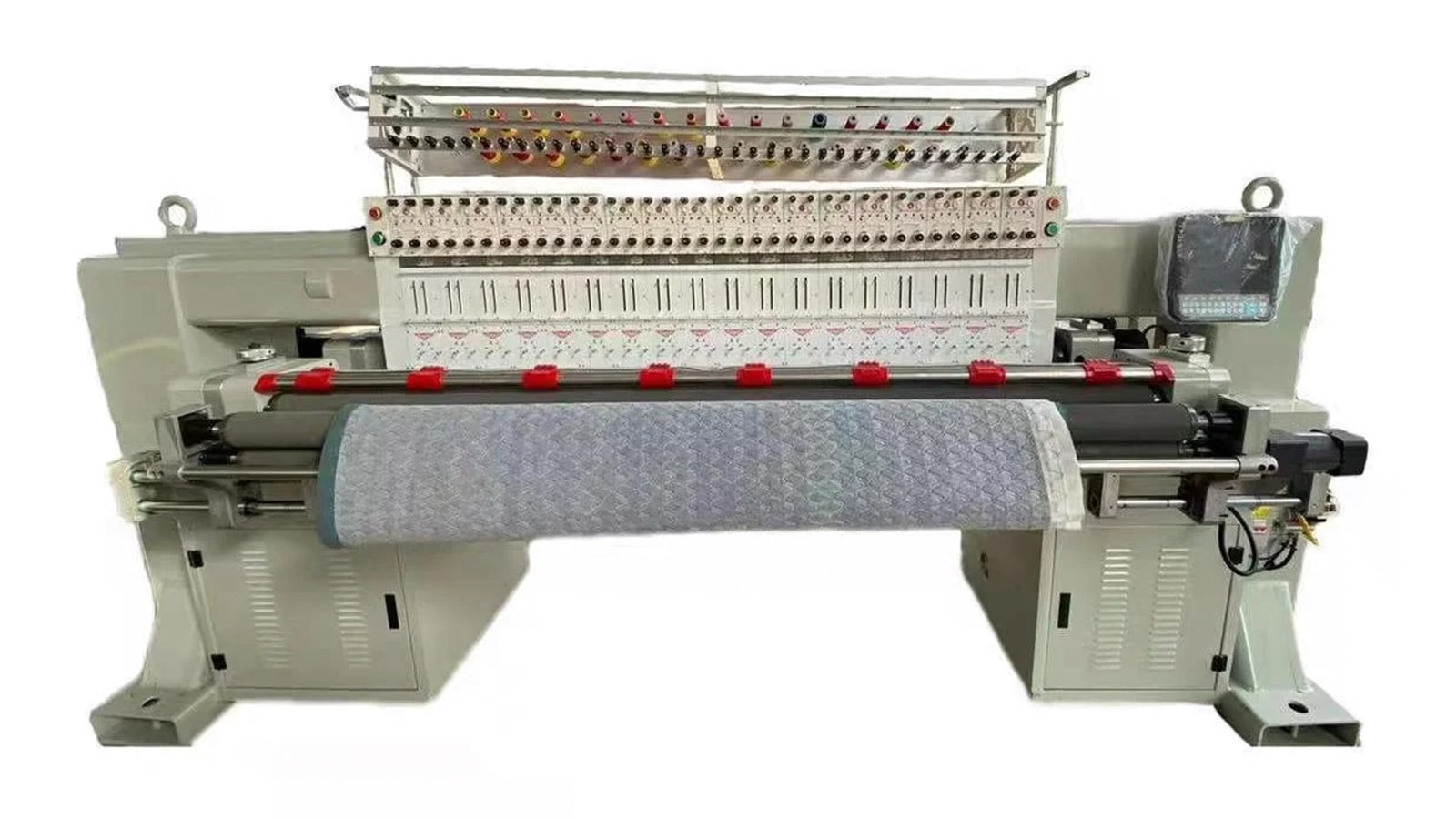

Xinjia XJ 2 18 Multi-Needle Quilting Machine

Xinjia XJ 2 18 Multi-Needle Quilting Machine
Xinjia XJ 2 18 Multi-Needle Quilting Machine

Xinjia XJ 2 18 Multi-Needle Quilting Machine provides ease of production with its low energy consumption and high speed. It is used in the production of products such as beddings, comforters, mattresses, bedspreads, and cushion covers.

TECHNICAL SPECIFICATIONS
ModelHeadsHead DistanceNeedle QuantityQuilting AreaDimensions
X Direction (1 pattern)
2333350,8 mm2 or 4300 mm5300x1980x1500 mm
2181850,8 mm2 or 4300 mm3730*1980*1500 mm
Main Shaft MotorServo Motor
X,Y MotorServo Motor
Speed:750 rpm - 900 rpm
Needle Capacity:12 million pcs
Number of Pattern:More than 100 kinds, By USB also
Shuttle:Big rotary hook
Stitch Length:0.1 - 12.7 mm
Power:380 V / 50 HZ
Power Consumption:233; 4.5 KW
218; 5.5 KW

Xinjia XJ 2 18 Brochure
